The Loop Tack Tester evaluates the contact
tack of adhesive tapes formed into a loop. This instrument is suitable for
assessing the tack of adhesive tapes, pressure-sensitive adhesives (PSAs), and
other adhesive materials in accordance with ASTM D6195.
Product
Features
·
7-inch touchscreen with GUI.
·
High-precision sensors for
accurate force measurement.
·
Smooth motion control system.
·
Intelligent configurations:
limit protection, overload protection, auto-positioning, power-off memory.
·
Optional latest operating
software with user-friendly interface, intelligent data processing, user
management, and secure data storage.
·
Includes micro-printer and USB
interface.
Test
Standards
·
Conforms to ASTM D6195.
|
Items |
Specifications |
|
Test Range |
0 ~ 50 N |
|
Accuracy |
0.5%FS |
|
Test Speed |
1 ~ 500 mm/min (adjustable) |
|
Power Supply |
120VAC 60Hz / 220VAC 50Hz |
|
Instrument Dimension |
330 mm (L) × 410 mm (W) × 680 mm (H) |
|
Net Weight |
27 kg |
Related Products
NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source. NHG268 gloss meter can test material with a high gloss (0-2000Gu), and universally applicable..
NHG268 tri angle touch screen gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 touchscreen glossmeter conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source. NHG268 touch screen gloss meter 2000gu can test..

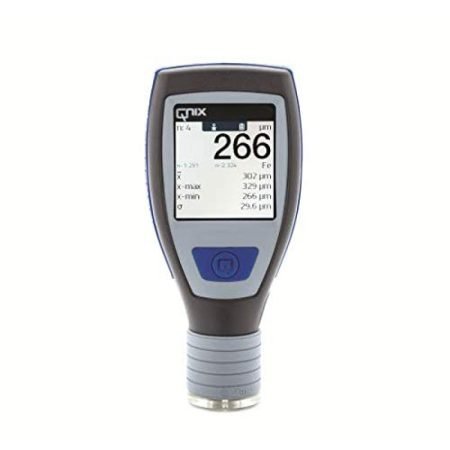

- Product Code: Qnix 5500
