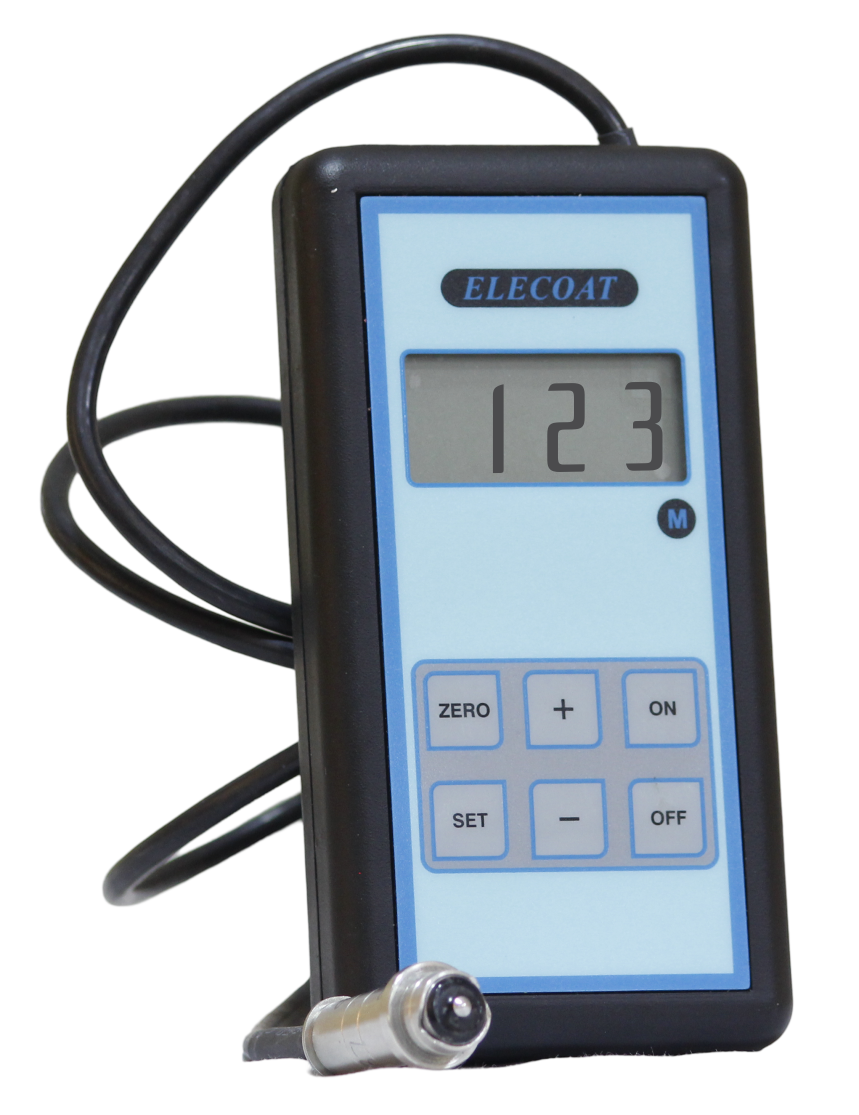

Elecoat Coating Thickness Gauge (Model: 2000M Ferrous)
Original price was: ₹16,400.00.₹14,760.00Current price is: ₹14,760.00.
The Elecoat Coating Thickness Gauge is a rugged, microcontroller-based digital meter designed for precise, non-destructive measurement of dry film thickness (DFT) on ferrous/magnetic substrates like mild steel, iron, and cast iron. Ideal for automotive painting, electroplating, galvanizing, and powder coating quality control.
- Range: 0 to 2000 Microns (µm)
- Substrate: Ferrous (F-Type) Only
- Warranty: 1 Year Manufacturer Warranty
- Includes: Probe, Zero Plates, Calibration Foils, and Carrying Case
Industrial-Grade Dry Film Thickness (DFT) Meter
Manufactured by Electromech Instruments, the Elecoat Digital Coating Thickness Gauge provides rapid, highly accurate readings without requiring frequent field calibrations. Its heavy-duty design makes it perfect for both workshop and field inspections.
Key Features:
- Direct Digital Readout: Clear LCD screen displays accurate measurements instantly in microns (micrometers).
- Microcontroller Technology: Sophisticated internal circuitry minimizes errors on curved surfaces or complex geometries.
- Easy Field Calibration: Equipped with quick ‘Zero’ and ‘SET’ keys to calibrate easily using the provided precision foils.
- Rugged Build Quality: Housed in an impact-resistant ABS enclosure with a flexible, spring-loaded metallic probe for extended life.
What’s in the Box?
- Elecoat Main Digital Unit
- Heavy-Duty External Measurement Probe
- Ferrous Zero Test Plate
- Set of Precision Calibration Shims/Foils
- 9V Heavy-Duty Battery
- Hard Carrying Case
- User Manual & Calibration Certificate
| Weight | 1 kg |
|---|---|
| Measuring Range | 0 – 2000 Microns (µm) |
| Substrate Type | Ferrous (F) |
| Resolution | 0.1 µm (under 20 µm) / 1 µm (above 20 µm) |
| Accuracy | ± 2% or 2 Microns (whichever is greater) |
